Technical Parameters:
Machine Model | DC8L | |
Axes | 8 | |
X-axis range (mm) | Max. 3000 *2 | |
Y-axis range (mm) | Max. 1500 | |
Z-axis range (º) | 360 *2 | |
A-axis range (º) | 90 | |
H-axis range (mm) | Max. 400 | |
Drilling | 1 | |
Filling | 1 | |
Tufting Type | Staple wire | |
Length of bristle outside hole (mm) | Min. 30 | Max. 300 |
Speed (r/min) | 180 | |
Fixtures | 3 | |
Hole diameter (mm) | Min. 6.0 | Max. 12.0 |
Total length of bristle (mm) | Min. 60 | Max. 650 |
Bristle diameter (mm) | Min. 0.1 | Filament 3*2mm Wire ≤0.7mm |
Color | 2 | |
Total power (kw) | 12 | |
Air consumption (mpa.) | 0.4 - 0.6 | |
Dimensions (L*W*H, cm) | Machine Body: 370 x 330 x 265 Electric Box: 45 x 65 x 147 | |
Weight (kg) | 2500 |
Features:

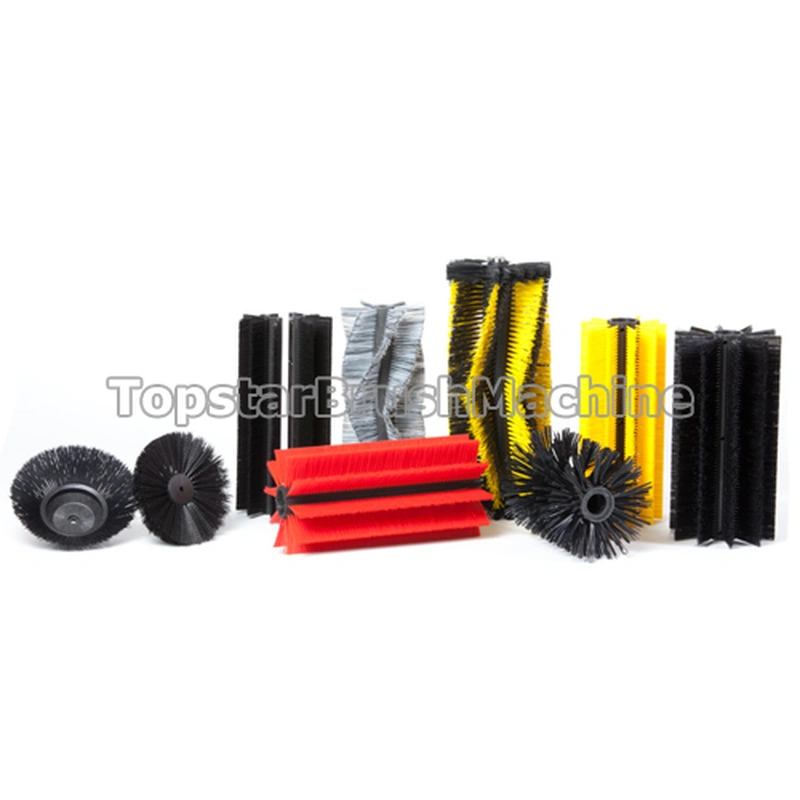

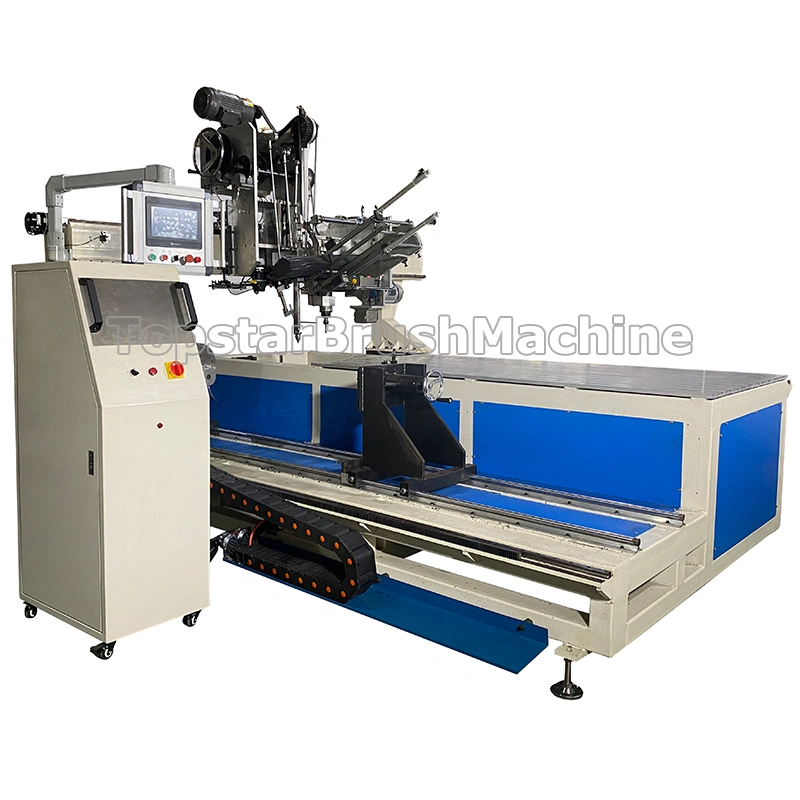

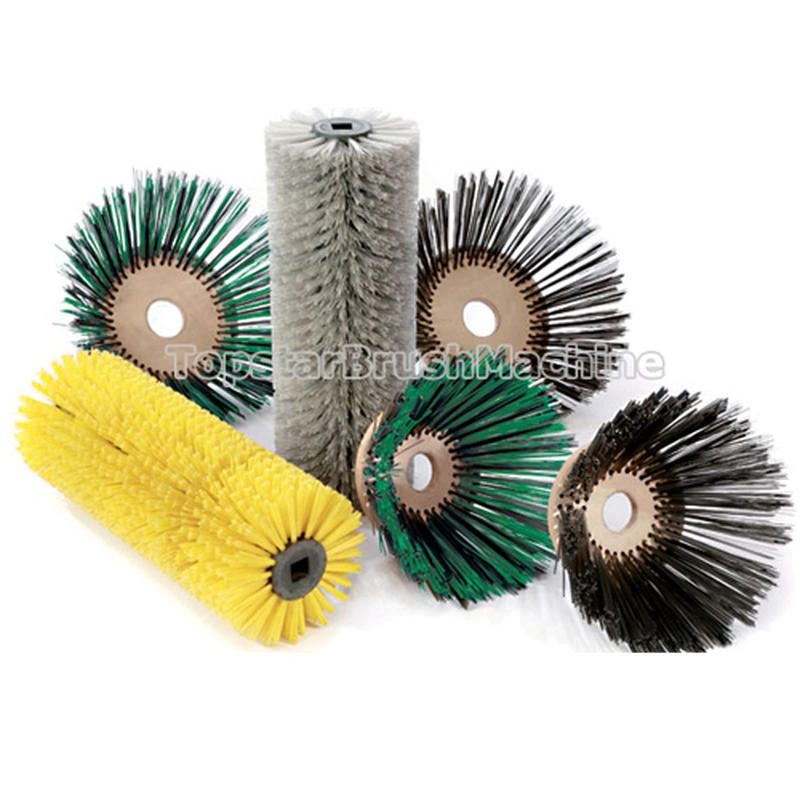

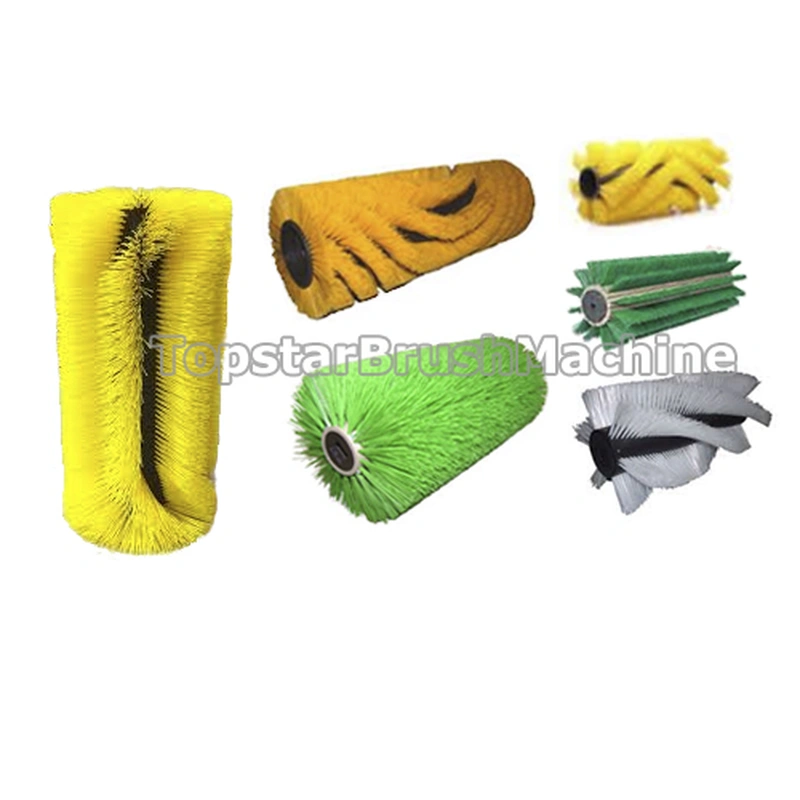

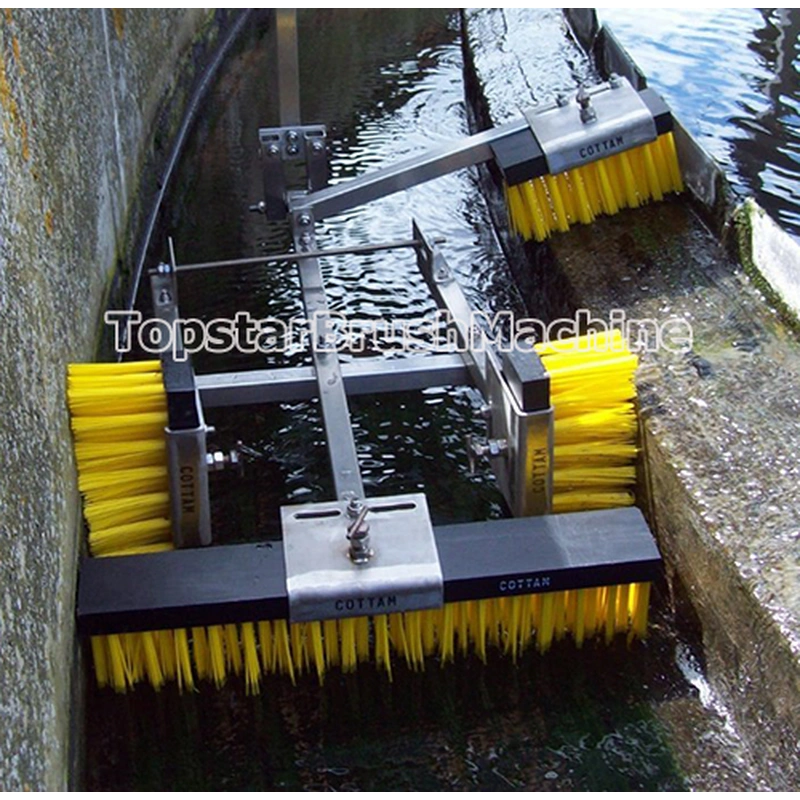

1. DC8L is a 3-in-1 integrated brush machine, which is able to produce disc brush / disk brush, cylinder brush / roller brush, lath brush / strip brush, board brush and other industrial technical brushes. Special for various types of sanitation brushes, such as road sweeper brush, side brush, floor sweeper brush, street sweeper brush, street broom, floor scrubber brush, carpet / rug washing brush, roller sweeping brush, road broom, road sweeping brush, cleaning brush roller, forklift brush, cow body brush, and so on.
2. It meets below standards of brush specifications:

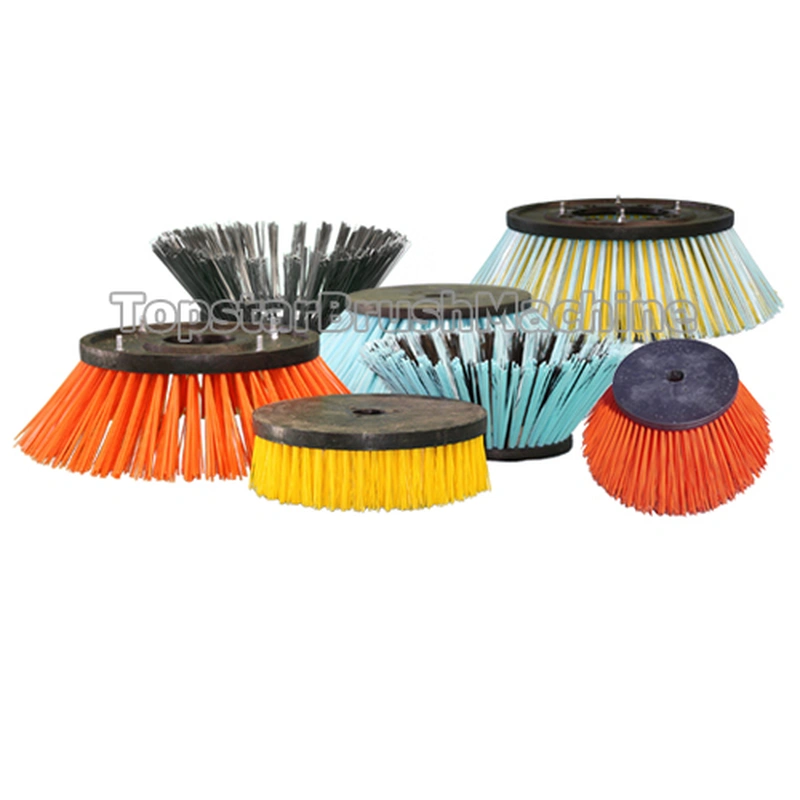

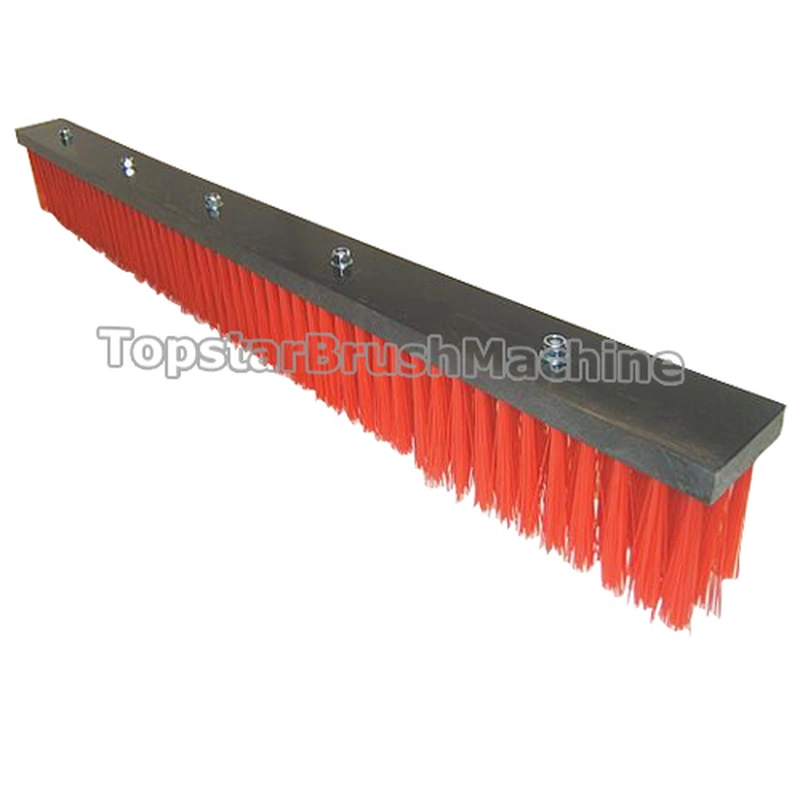

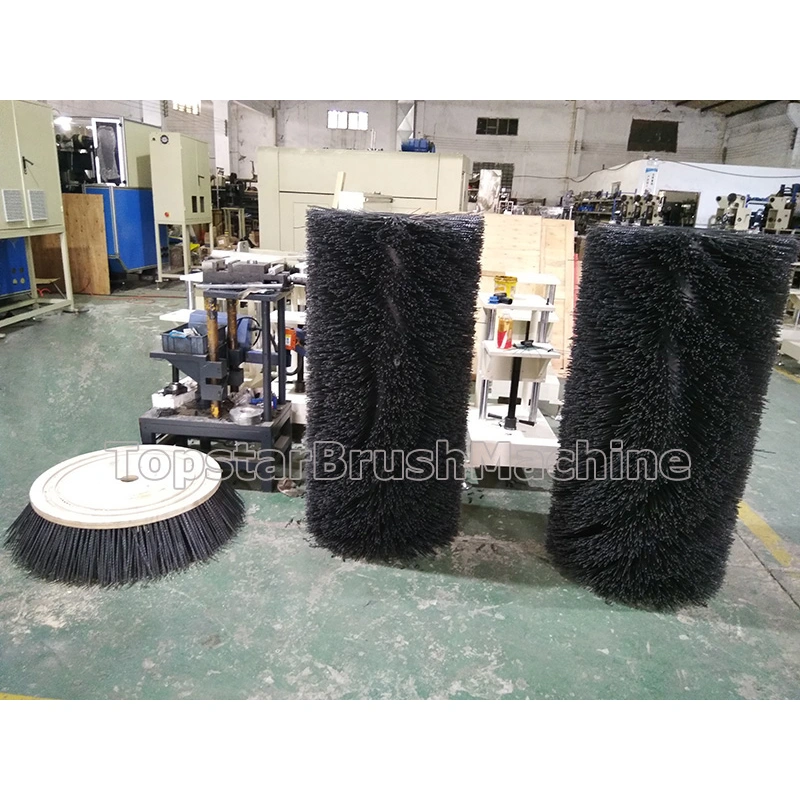

1) Disc brush: outer diameter max.700mm, filling angle 0-60º;
2) Roller brush: outer diameter max. 300mm, length of tube body max. 2500mm;
3) Board brush: length max. 2000mm, width max. 1000mm;
4) Length of filament from the top of brush base: max. 300mm;
5) Hole diameter: 6mm-12mm.
3. The bristle conveyor has the advantages of high processing precision and good tightness, and can be used for filling fiber with a dimeter of 0.07mm, and the problem of bristle loss can be effectively reduced. Also, can fill 3*2mm PP big fiber, PA fiber, Steel wire, straight wire 3*0.6mm or corrugated / wave / crimped wire dia. < 0.7mm.

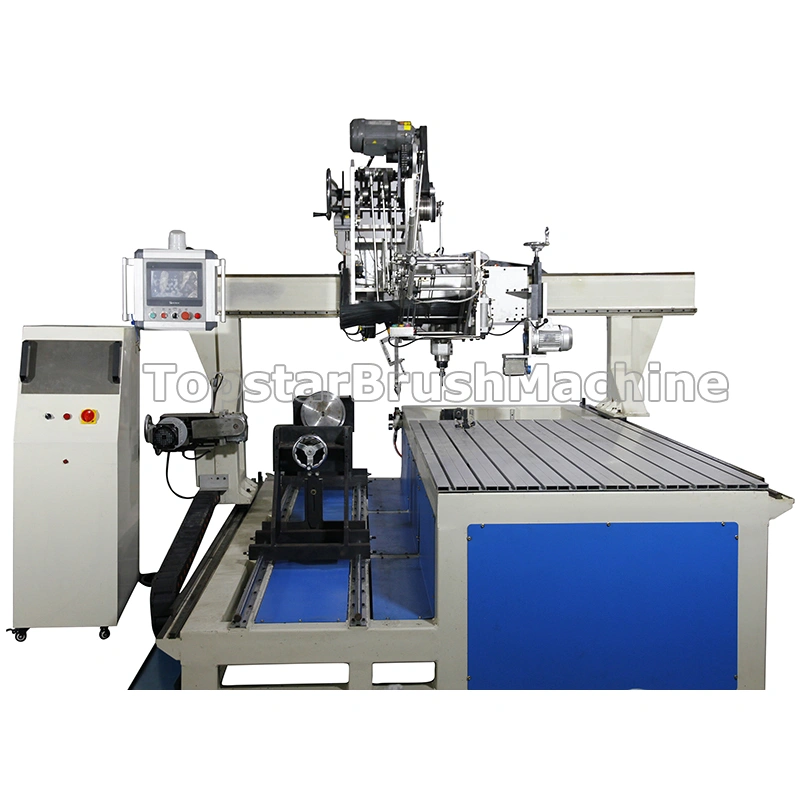

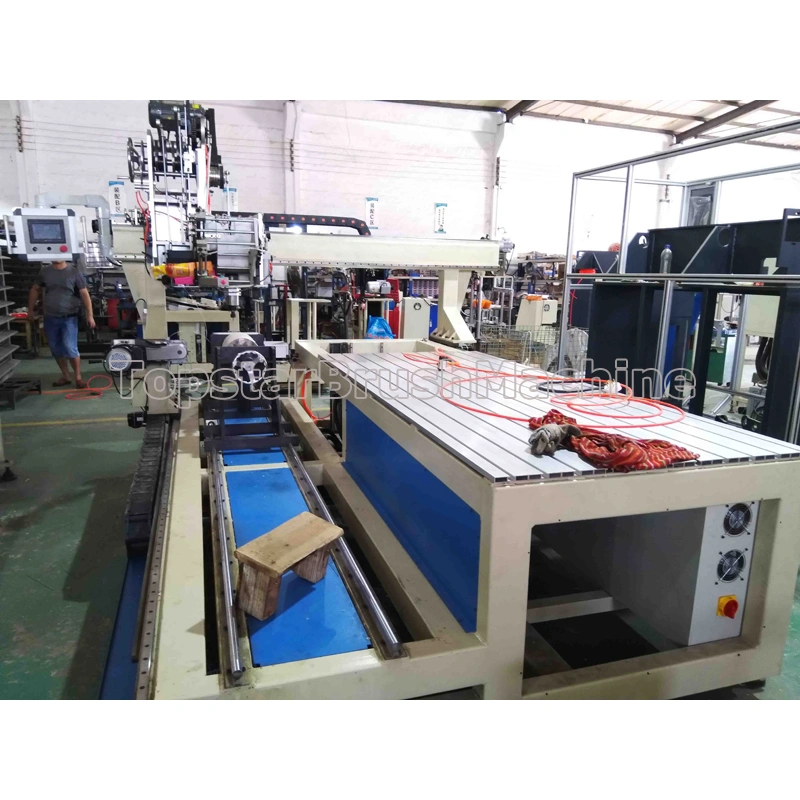

4. Adopt moveable gantry structure, stable and solid, safe and reliable.

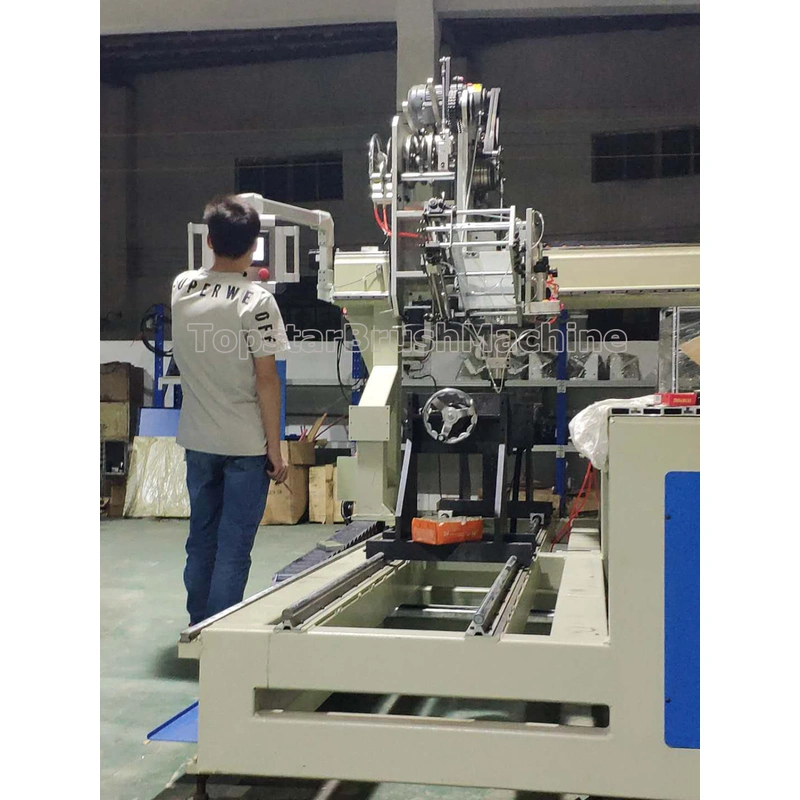

5. Designed by 1 drilling and 1 tufting, support mixed drill and fill, drill fist then fill, synchronize drill and fill, drill only, fill only and other processing modes.
6. Adopt high-speed machine head system. Speed reaches 180r/m, 1-3 holes per second.
7. Single color and double colors are optional.
8. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, easy to understand.
9. Software is with insert, division, offset, step hole, block move, block copy, and other functions. It is convenient and flexible, easy to program.
10. Can program different hole pattern, such as straight, staggered, V-shape, W- shape, U-shape / arc shape, spiral, trapezoidal, full circle type, avoiding space type, equal portion type, etc.
11. Unit of product data is in rows. The entire system can store 999 rows, each row can store 9999 holes, and each hole can expand 255 stepping holes. Divide into 32 product numbers, support external USB.
12. Tufting spare parts such as needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.
13. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.
14. Machine got CE approved.
