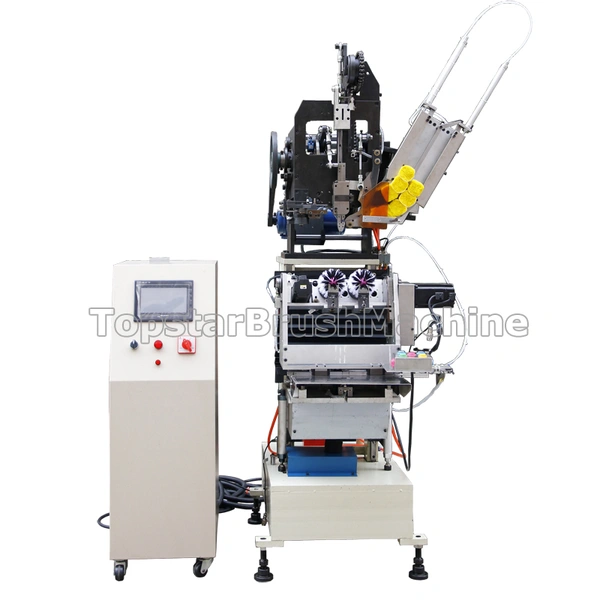

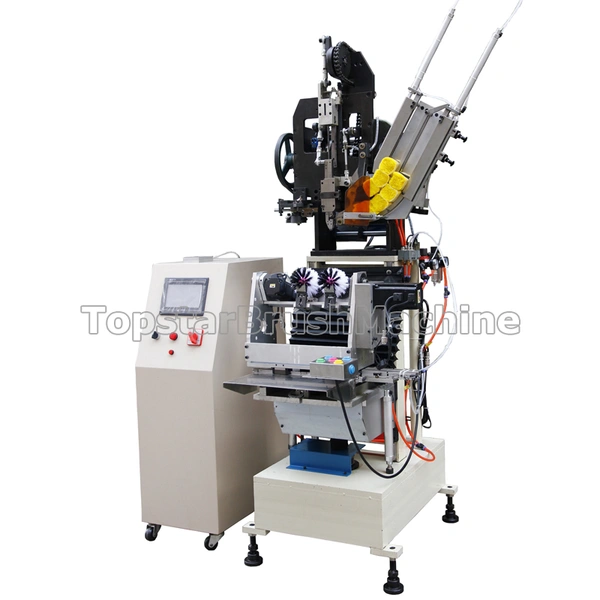

4 Axis Single Head Tufting Machine / SF4AS

sku:

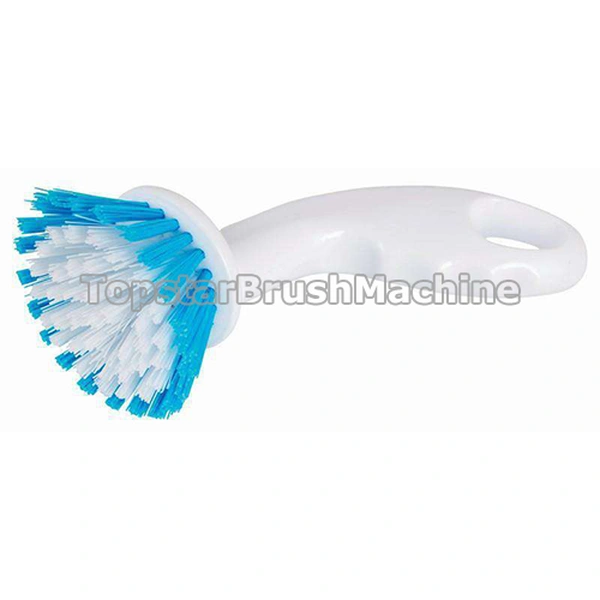

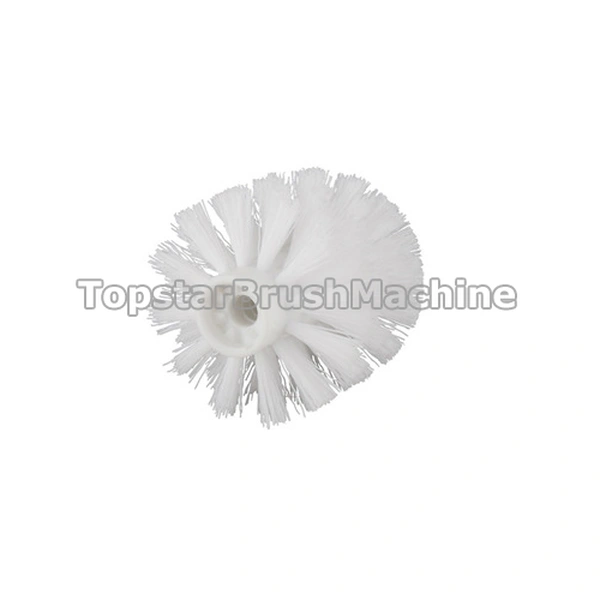

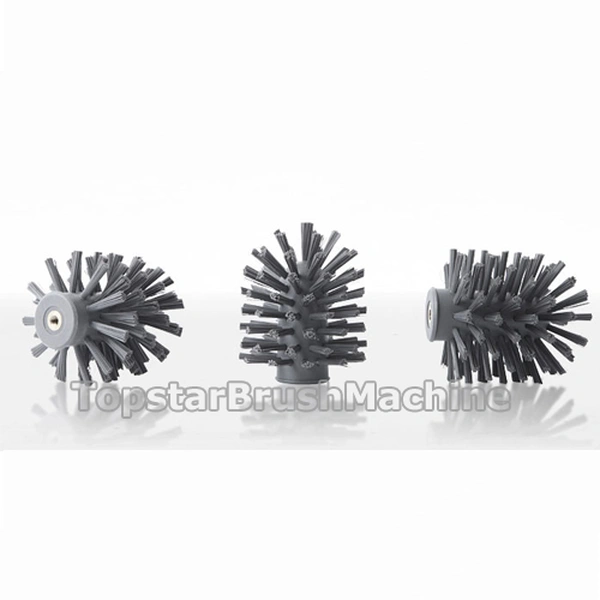

SF4AS is a brush tufting machine special for pre-hole round toilet brush head (without handle), drill brush, round-head brush, dish brush, scrubber brush, and other small household brushes. Machine got CE approved.



Technical Parameters:


Machine Model

SF4AS

Axes

4

X-axis range (º)

90

Y-axis range (mm)

Max. 300

Z-axis range (º)

360

H-axis range (mm)

Max. 200

Drilling

0

Filling

1

Tufting Type

Staple wire

Flat wire

Length of bristle outside hole (mm)

Min. 15

Max. 50

Speed (r/min)

450

Fixtures

2

Hole diameter (mm)

Min. 3.0 – Max. 6.0

Min. 2.5 - Max. 5.0

Total length of bristle (mm)

Min. 36

Max. 110

Bristle diameter (mm)

Min. 0.07

Max. 1.5

Color

2

Total power (kw)

3

Air consumption (mpa.)

0.4 - 0.6

Dimensions (L*W*H, cm)

Machine Body: 104 x 91 x 180

Electric Box: 41 x 35 x 104

Weight (kg)

500


Features:


1. SF4AS is a brush tufting machine special for pre-hole round toilet brush head (without handle), drill brush, round-head brush, dish brush, scrubber brush, and other small household brushes.

2. Adopt high-speed machine head system. Speed reaches 450r/m, up to 7-8 holes per second.

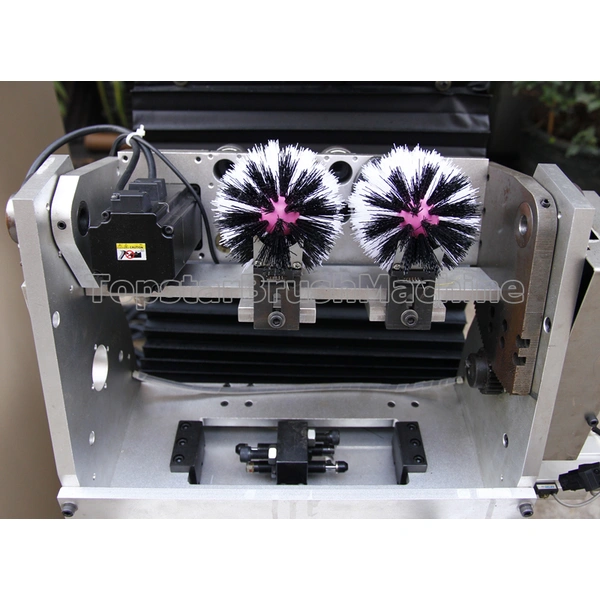

3. Designed by 1 tufting, equipped with a platform 2 clamping stations, works in continuous cycle, high efficiency.

4. Single color and double colors are optional.

5. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, flexible and convenient operation.

6. Software is with insert, division, offset, modify and other functions, easy to program.

7. Can save 128 different brushes programs. Support external USB.

8. Tufting spare parts such as tufting needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.

9. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.

10. Machine got CE approved.
