Technical Parameters:
Machine Model | SF4AD | |
Axes | 4 | |
X-axis range (mm) | Max. 510 | |
Y-axis range (mm) | Max. 510 | |
Z-axis range (º) | 360 | |
H-axis range (mm) | Max. 200 | |
Drilling | 0 | |
Filling | 1 | |
Tufting Type | Staple wire | |
Stroke (mm) | Min. 17 | Max. 130 |
Speed (r/min) | 450 | |
Fixtures | 2 | |
Hole Diameter (mm) | Min. 3.0 – Max. 8.0 | |
Filament length (mm) | Min. 40 | Max. 270 |
Filament Diameter (mm) | Min. 0.07 | Max. 1.5 |
Color | 2 | |
Power consumption (kw) | 3 | |
Air consumption (mpa.) | 0.4 - 0.6 | |
Dimensions (L*W*H, cm) | Machine Body: 104 x 91 x 180 Electric Box: 41 x 35 x 104 | |
Weight (kg) | 550 | |
Features:

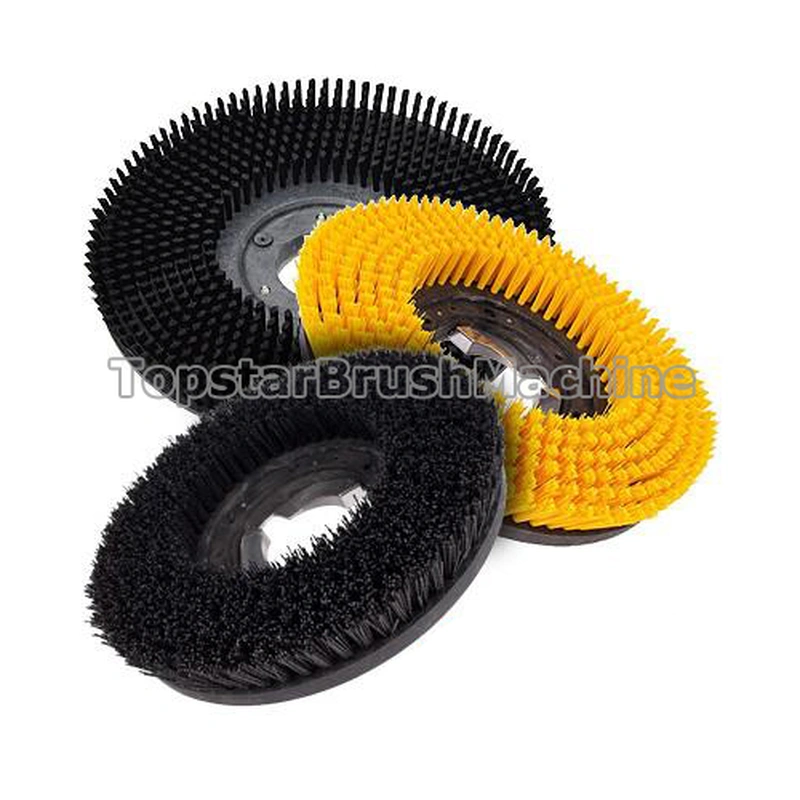

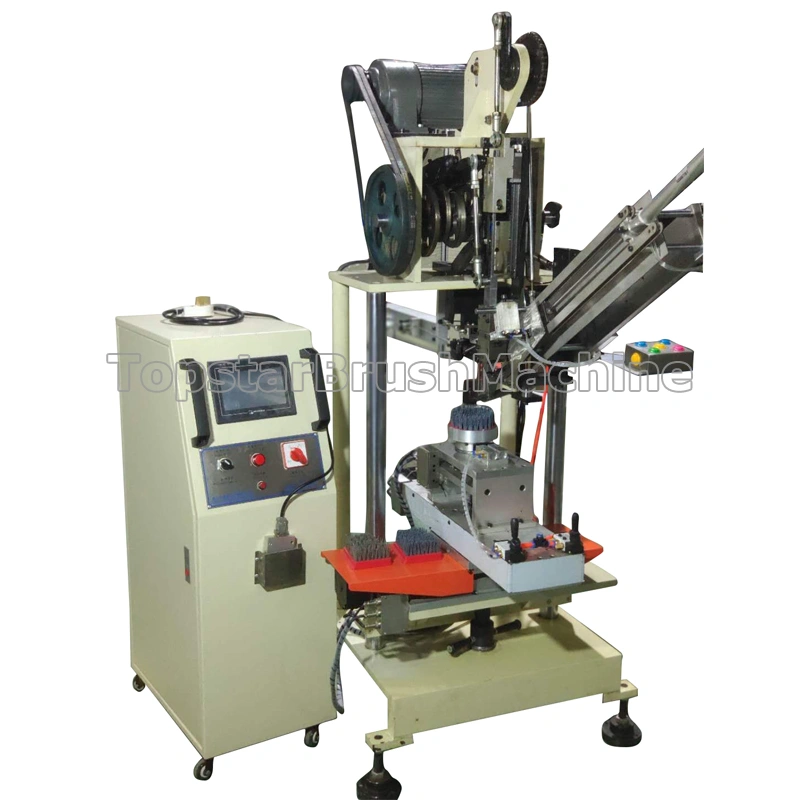

1. SF4AD is a brush tufting machine for pre-hole disc brushes, such as floor scrubber brush, floor sweeper brush, carpet / rug wash brush, floor cleaning brush, road sweeper brush, airport cleaning brush, etc.
2. Adopt high-speed machine head system. Speed reaches 450r/m, up to 7-8 holes per second.

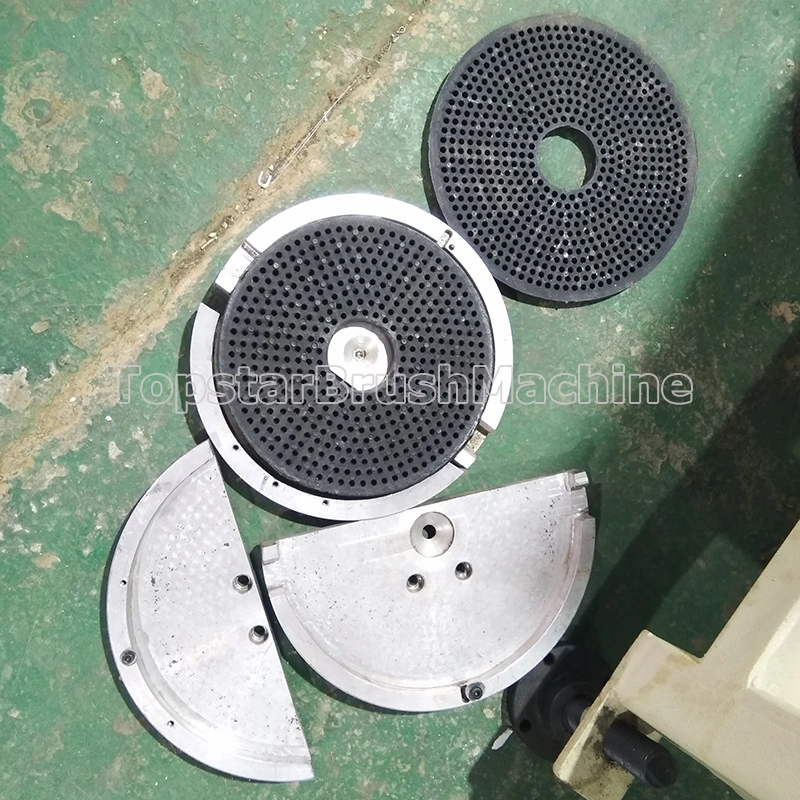

3. Designed by 1 tufting, equipped with a platform 1 or 2 clamping stations 1 or 2 fixtures, works in continuous cycle, high efficiency.
4. Single color and double colors are optional.
5. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, flexible and convenient operation.
6. Software is with insert, division, offset, modify and other functions, easy to program.
7. Can save 128 different brushes programs. Support external USB.
8. Tufting spare parts such as tufting needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.
9. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.
10. Machine got CE approved.
