Technical Parameters:
Machine Model | SF3AD | |
Axes | 3 | |
X-axis range (mm) | Max. 350 | |
Y-axis range (mm) | Max. 350 | |
Z-axis range (º) | 360 | |
Drilling | 0 | |
Filling | 1 | |
Tufting Type | Staple wire | |
Length of bristle outside hole (mm) | Min. 17 | Max. 130 |
Speed (r/min) | 450 | |
Fixtures | 2 | |
Hole diameter (mm) | Min. 3.0 – Max. 6.0 | |
Total length of bristle (mm) | Min. 40 | Max. 270 |
Bristle diameter (mm) | Min. 0.07 | Max. 1.5 |
Color | 2 | |
Total power (kw) | 3 | |
Air consumption (mpa.) | 0.4 - 0.6 | |
Dimensions (L*W*H, cm) | Machine Body: 104 x 91 x 180 Electric Box: 41 x 35 x 104 | |
Weight (kg) | 500 | |
Features:

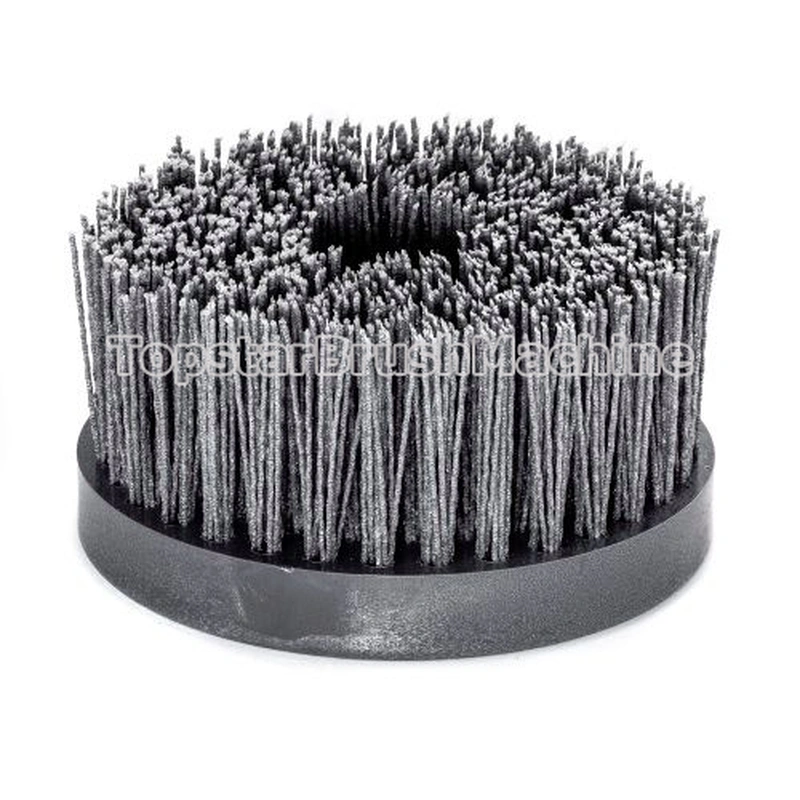

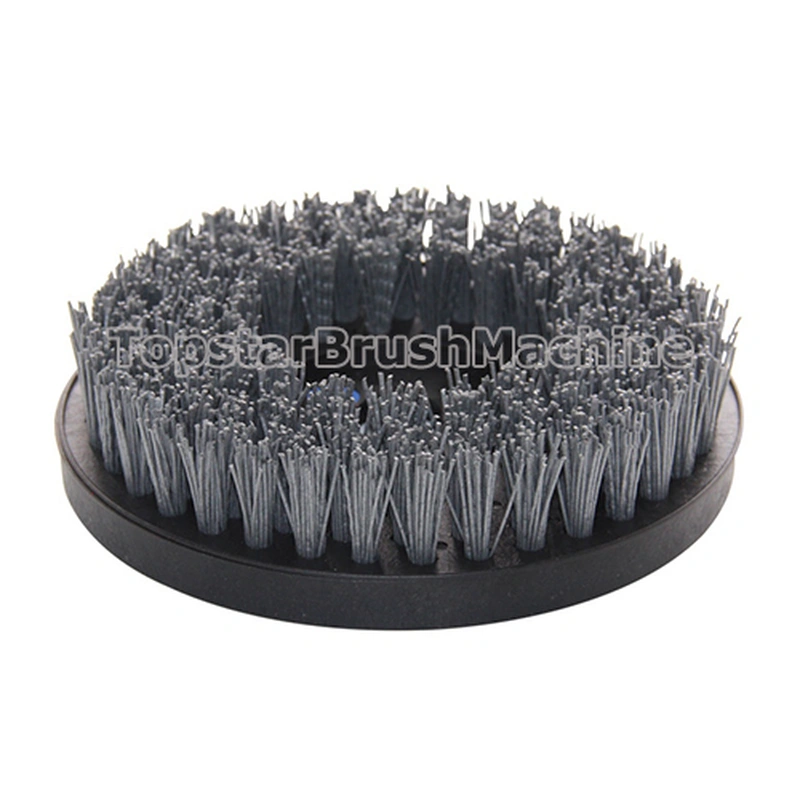

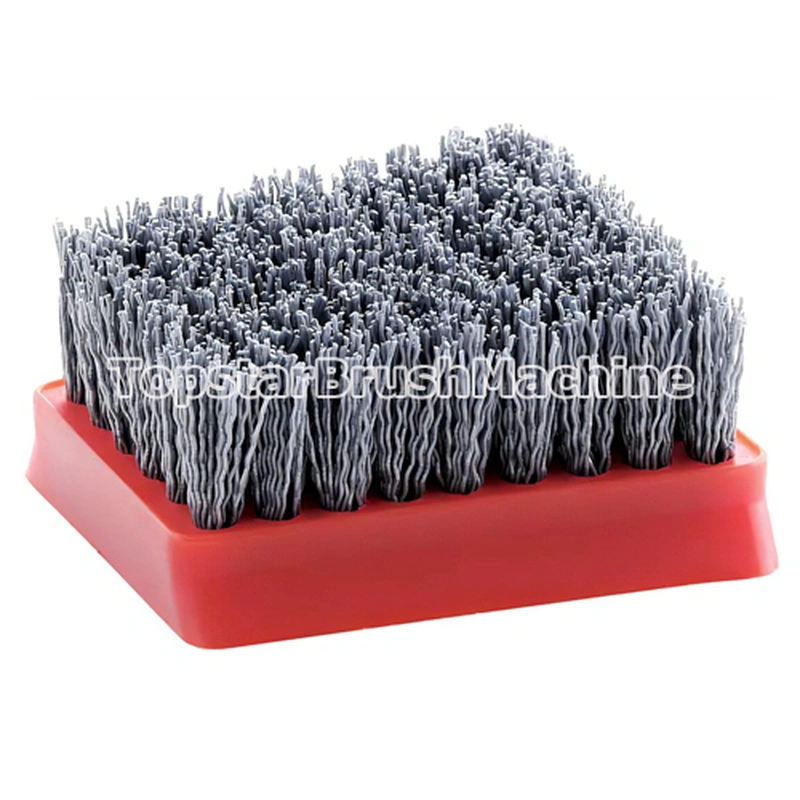

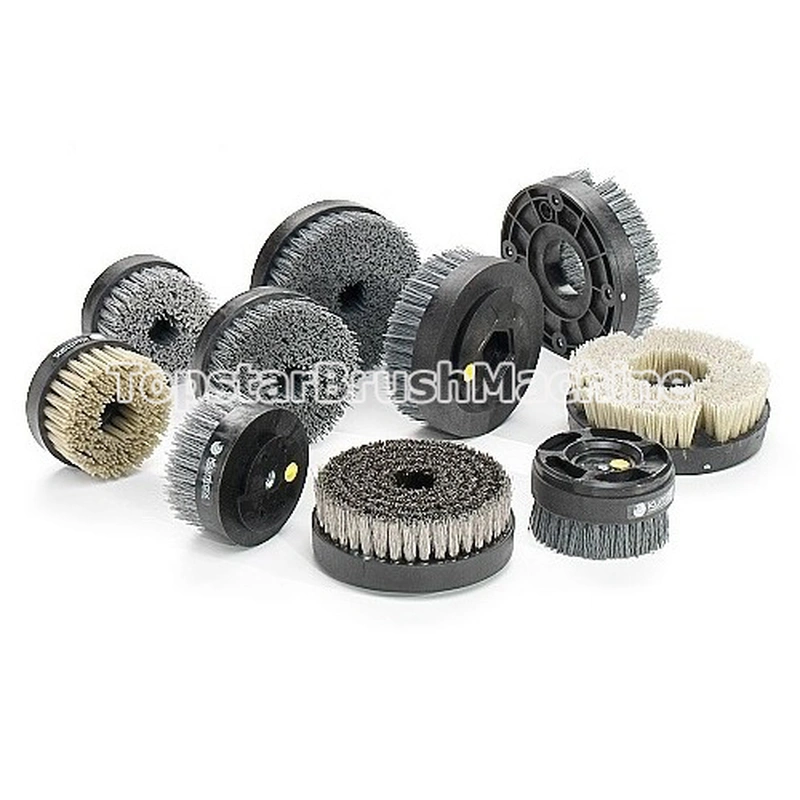

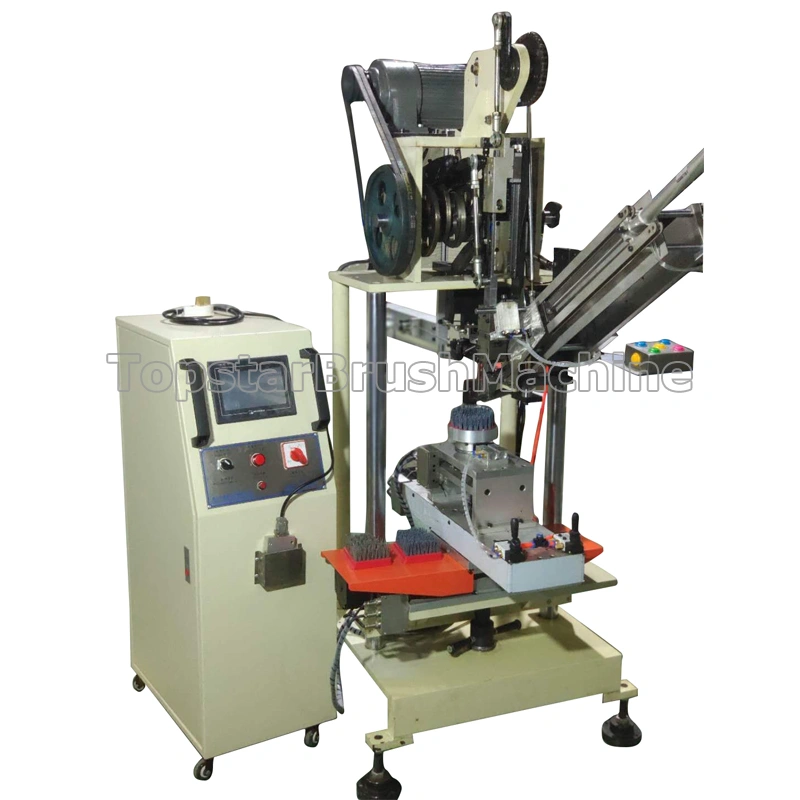

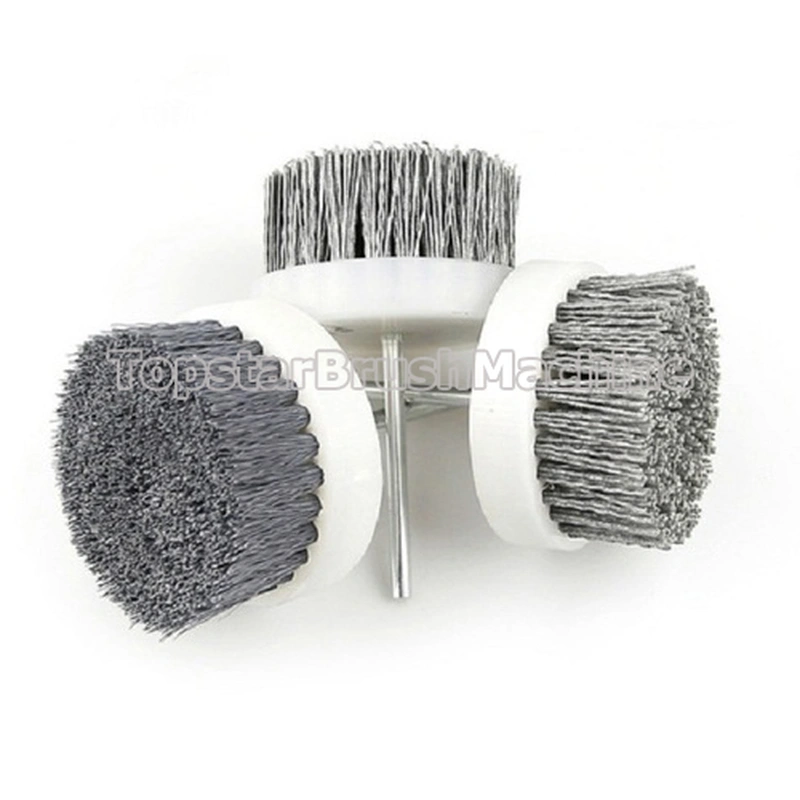

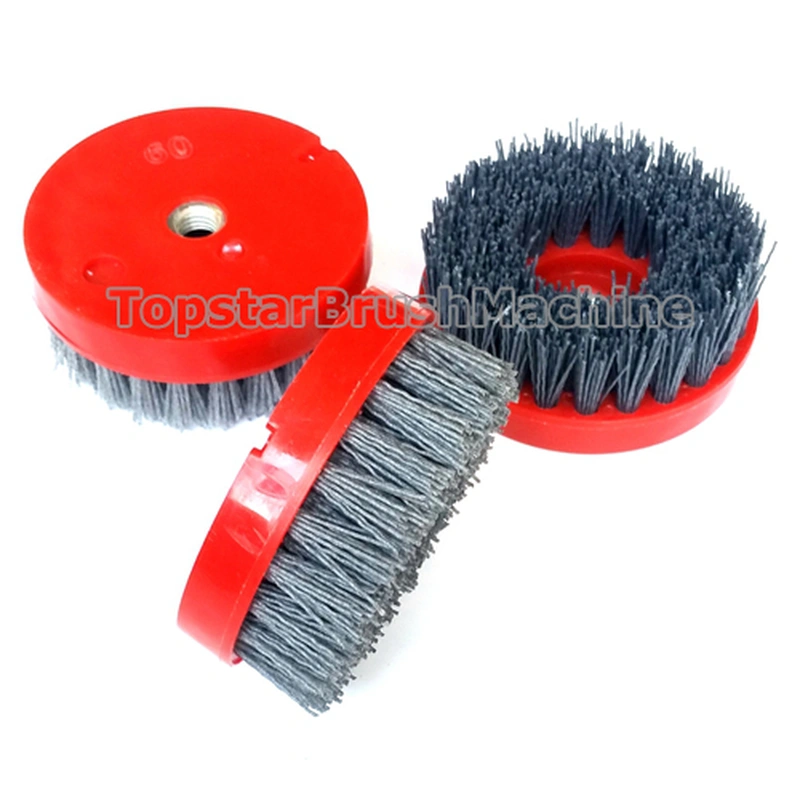

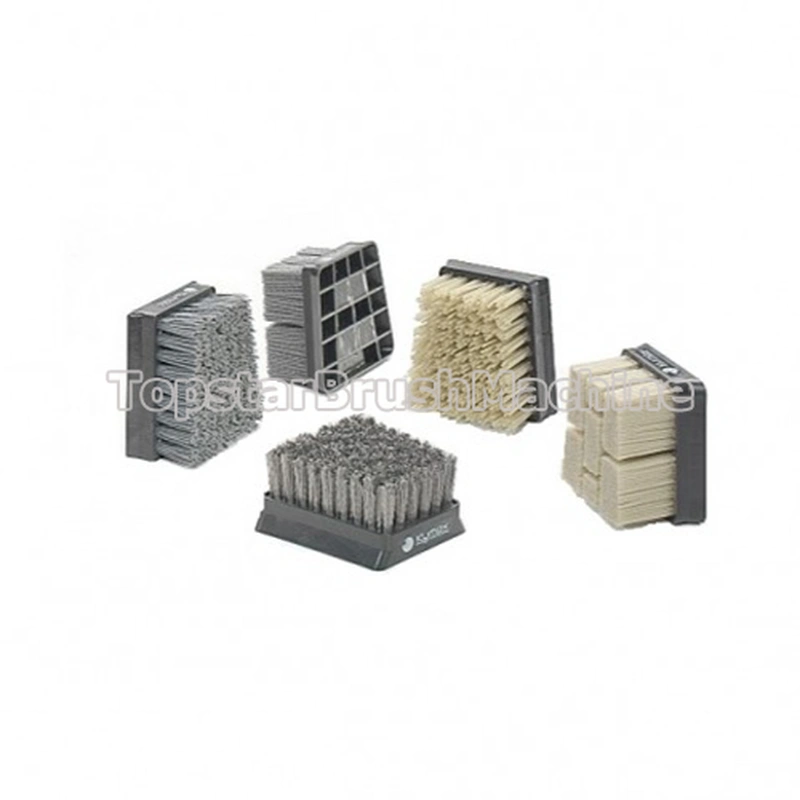

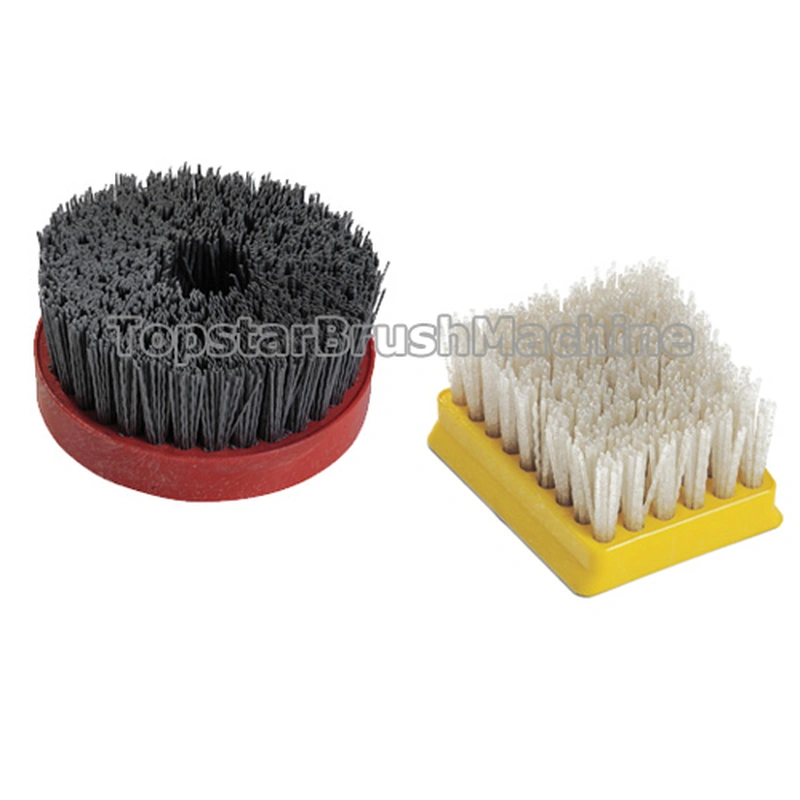

1. SF3AD is a brush tufting machine for pre-hole disc brushes and plane brushes, such as abrasive brush, stone brush, stone polishing silicon abrasive filament brush, diamond abrasive brush, etc.
2. Adopt high-speed machine head system. Speed reaches 450r/m, up to 7-8 holes per second.

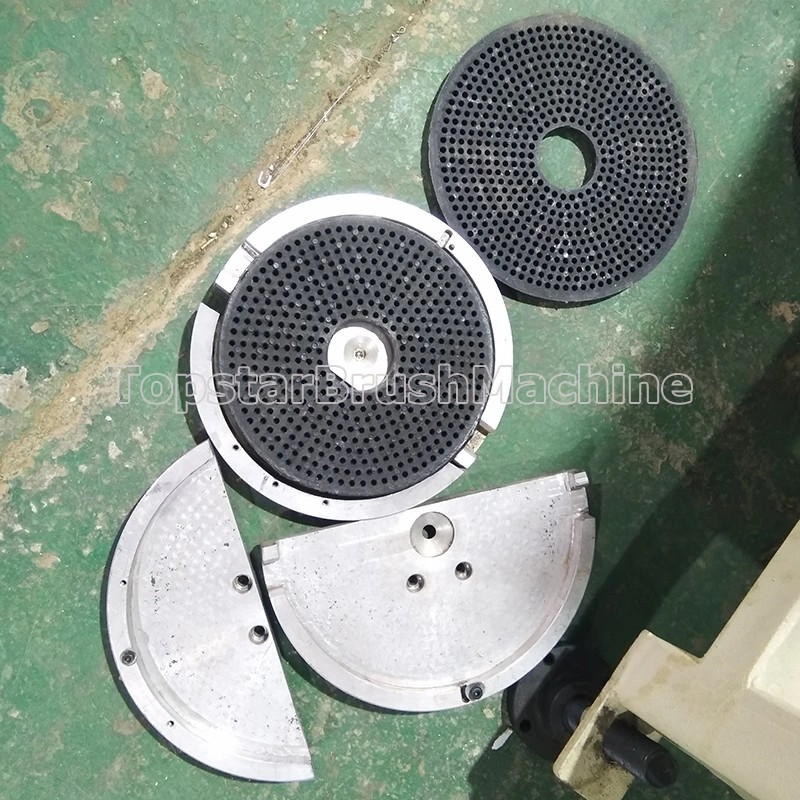

3. Designed by 1 tufting, equipped with a platform 1 or 2 clamping stations 1 or 2 fixtures, works in continuous cycle, high efficiency.
4. Single color and double colors are optional.
5. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, flexible and convenient operation.
6. Software is with insert, division, offset, modify and other functions, easy to program.
7. Can save 128 different brushes programs. Support external USB.
8. Tufting spare parts such as tufting needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.
9. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.
10. Machine got CE approved.
