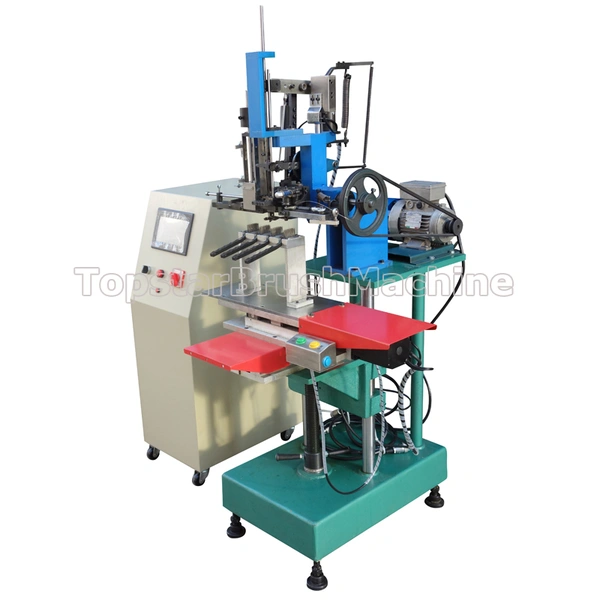

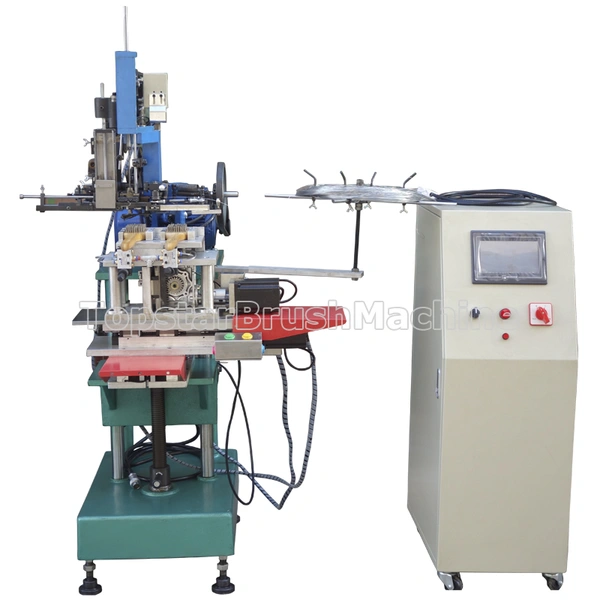

3 Axis Single Head Tufting Machine / LS3A1T

sku:

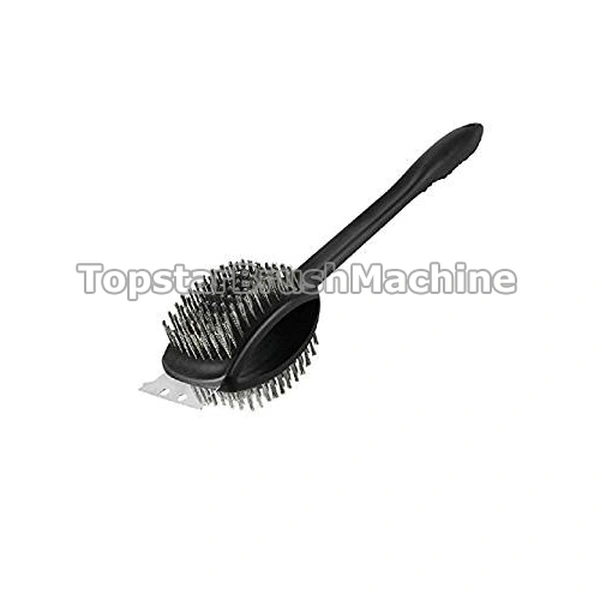

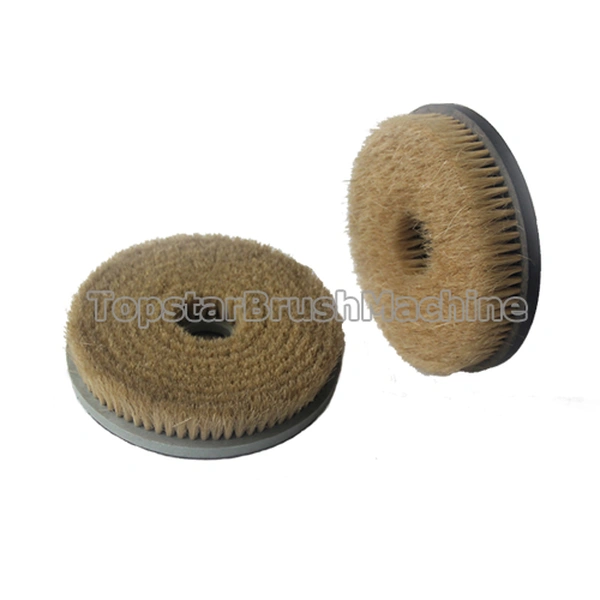

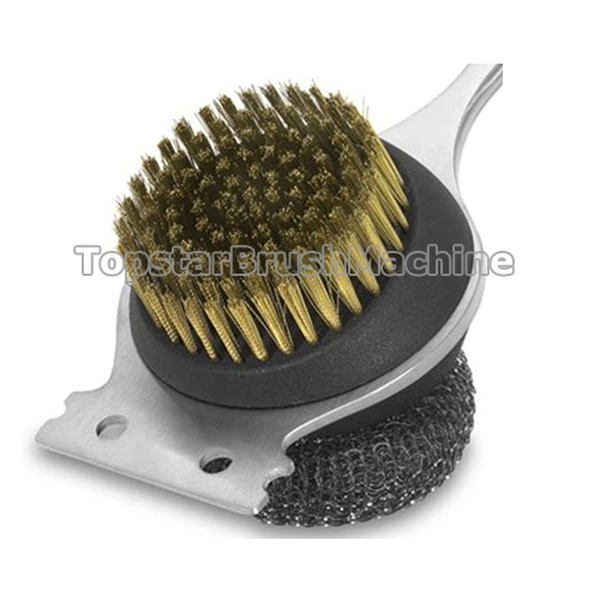

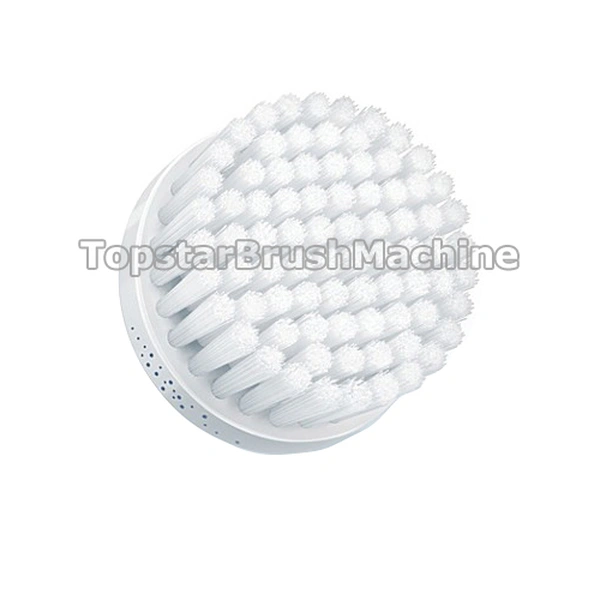

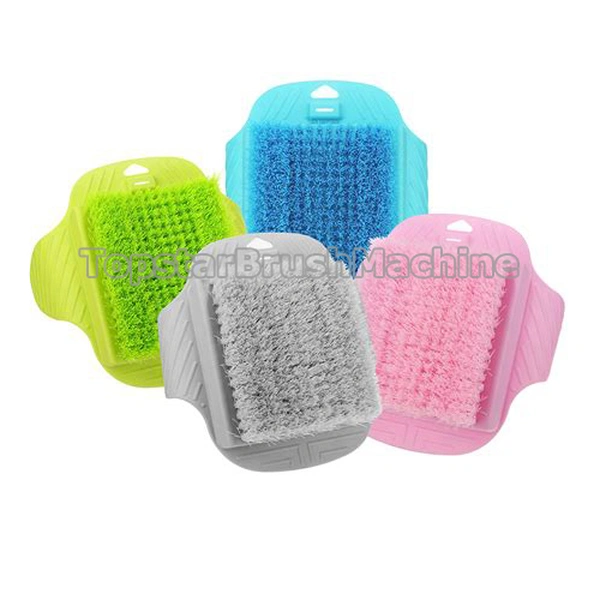

LS3A1T is a 3 axis brush machine special for face wash brush, foot scrubbing brush, grill brush, wire brush, block brush, baby brush, bath brush, hand wire brush, wire duster brush, bristle brush, shoe polishing brush, hair dye brush, neck duster, scrubber brush, lime brush, cloth brush, egg wash brush, polish brush, cleaning brush, etc. Machine got CE approved.



Technical Parameters:


Machine Model

LS3A1T

Axes

3

X-axis range (mm)

Max. 170

Y-axis range (mm)

Max. 170

Z-axis range (mm / º)

Max. 200 / 360º

Drilling

0

Filling

1

Tufting Type

Staple wire

Flat wire

Length of bristle outside hole (mm)

Min. 12

Max. 35

Speed (r/min)

400

Fixtures

1 or 2 or 4

Hole diameter (mm)

Min. 2.2

Max. 5.0

Total length of bristle (mm)

Min. 30

Max. 80

Bristle diameter (mm)

Min. 0.05

Max. 1.2

Color

2

Total power (kw)

2

Air consumption (mpa.)

0.4 - 0.6

Dimensions (L*W*H, cm)

Machine body: 85 x 90 x 160

Electric Box: 41 x 35 x 104

Weight (kg)

350


Features:


1. LS3A1T is a 3 axis brush machine special for face wash brush, foot scrubbing brush, grill brush, wire brush, block brush, baby brush, bath brush, hand wire brush, wire duster brush, bristle brush, shoe polishing brush, shoe shine brush, hair dye brush, neck duster, scrubber brush, lime brush, wall brush, cloth brush, egg wash brush, polish brush, cleaning brush, etc.

2. Adopt small machine head system which is good for short bristle and small hole. It’s special for tufting steel wire, copper wire, nature bristle, animal bristle, such as pig bristle, boar bristle, wool, cow hair, horse hair, etc.

3. Designed by 1 tufting, equipped with a platform 1 or 2 clamping stations 1 or 2 or 4 fixtures, works in continuous cycle, high efficiency.

4. Speed reaches 400r/m, up to 5-6 holes per second.

5. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, flexible and convenient operation.

6. Operation software have insert holes, division, offset, block move, block copy and other expansion functions, flexible and convenient operation.

7. Can save 128 different brushes programs, support external USB.

8. Single color and double colors are optional.

9. The tufting accessories such as tufting needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.

10. Tufting spare parts achieve multi-process finishing, beautiful and durable.

11. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.

12. Machine got CE approved.
