Technical Parameters:
Machine Model | SF2AL | |
Axes | 2 | |
X-axis range (mm) | Max. 180 | |
Y-axis range (mm) | Max. 350 | |
Drilling | 0 | |
Filling | 1 | |
Tufting Type | Staple wire | |
Length of bristle outside hole (mm) | Min. 17 | Max. 180 |
Speed (r/min) | 450 | |
Fixtures | 2 | |
Hole diameter (mm) | Min. 3.0 – Max. 8.0 | |
Total length of bristle (mm) | Min. 40 | Max. 400 |
Bristle diameter (mm) | Min. 0.1 | Max. 1.5 |
Color | 2 | |
Total power (kw) | 2 | |
Air consumption (mpa.) | 0.4 - 0.6 | |
Dimensions (L*W*H, cm) | Machine Body: 120 x 91 x 200 Electric Box: 41 x 35 x 104 | |
Weight (kg) | 550 | |
Features:

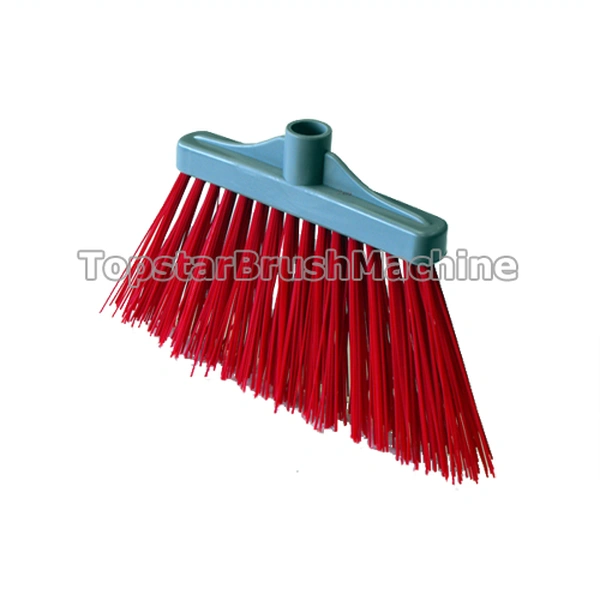

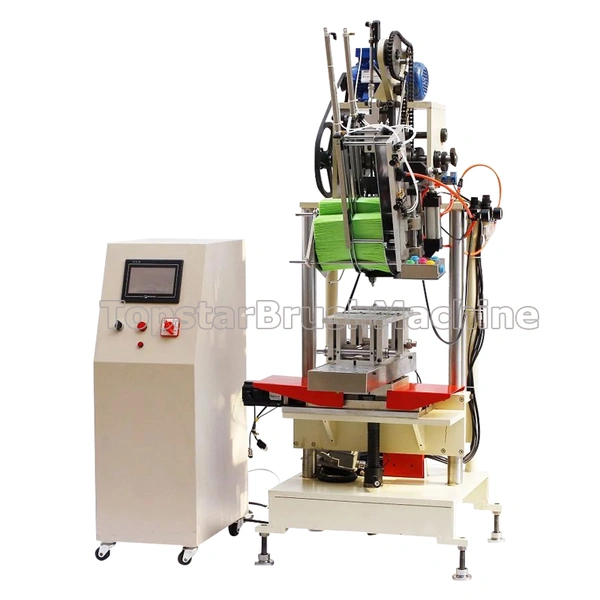

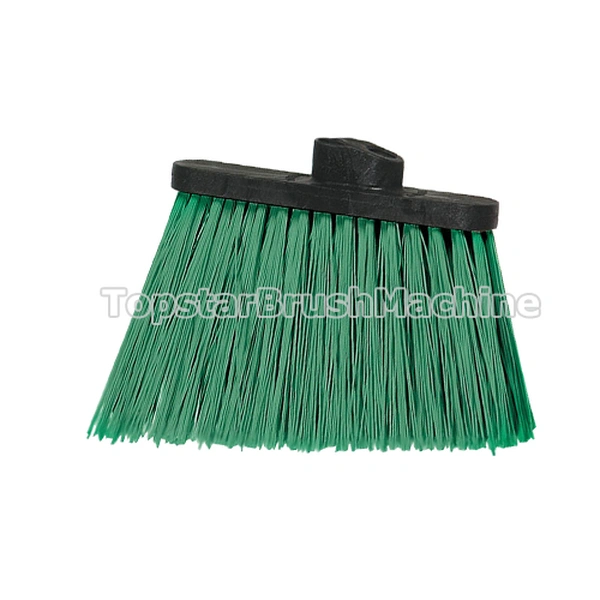

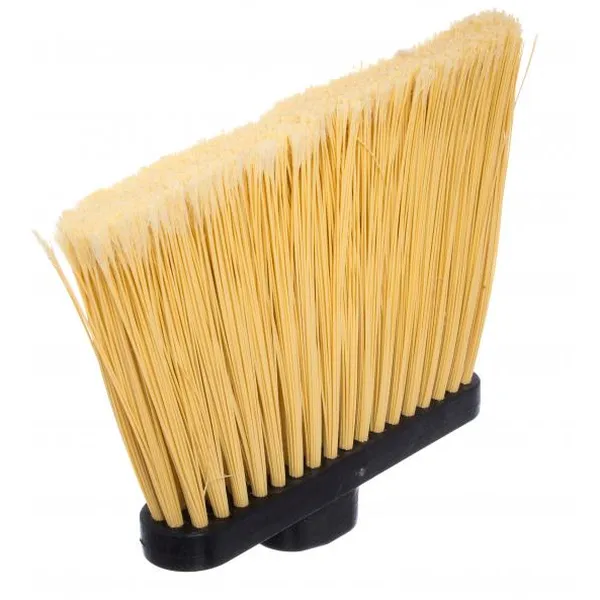

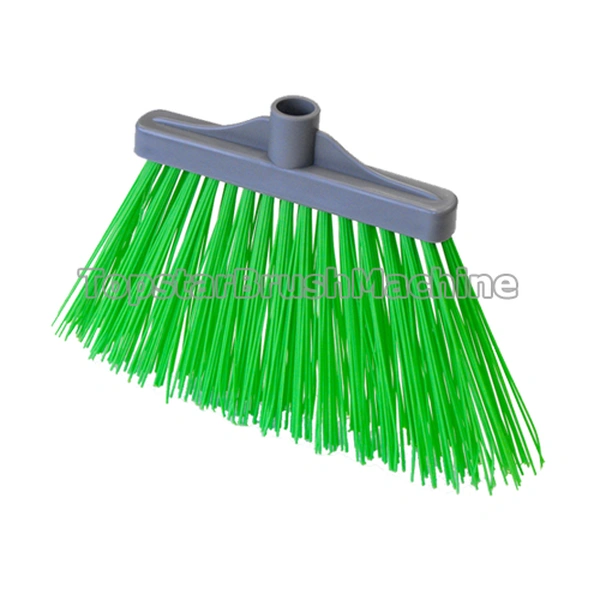

1. SF2AL is a long stroke brush tufting machine special for pre-hole big broom, angle broom, garden broom, and it can be also used for indoor brooms, scrub brush, dustpan brush, car brush, and other brushes in flat shape.
2. Adopt high-speed machine head system. Speed reaches 450r/m, up to 6-7 holes per second.
3. Designed by 1 tufting, equipped with a platform 2 clamping stations, works in continuous cycle, high efficiency.
4. Single color and double colors are optional.
5. PLC and touch screen control system, multi-language version, such as Chinese, English and Spanish, flexible and convenient operation.
6. Software is with insert, division, offset, modify and other functions, easy to program.
7. Can save 128 different brushes programs. Support external USB.
8. Tufting spare parts such as tufting needle, concave die, convex die, etc. are standardized designs, and achieve multi-process finishing, beautiful and durable. Easy to repair and replace as well.
9. Use Italy brand brake motor, Delta or YASKAWA servo motor and driver, imported brand bearing, Schneider relay, and other good quality components.
10. Machine got CE approved.
